Product Description

• Model NameDS 250
• Trim NameBase
• Generic Type (Primary)Youth
• Engine
• Engine Type4-stroke single cylinder
• Displacement249.4 cc
• Cooling SystemLiquid cooled
• Fuel InjectionKeihin† PTG 23
• DrivetrainChain driven / solid axle
• TransmissionCVT, F / N / R
• Suspension
• Front SuspensionDouble A-arm
• Front Travel (in./cm.)5.5 in. (14 cm)
• Front ShocksOil
• Rear SuspensionSwingarm
• Rear Travel (in./cm.)6.7 in. (17 cm)
• Rear ShocksOil
• Brakes
• Front braking systemDual hydraulic disc brakes
• Rear braking systemSingle hydraulic disc brake
• Wheels & Tires
• Front TireKenda 22 x 7 x 10 in. (55.9 x 17.8 x 25.4 cm)
• Rear TireKenda 20 x 11 x 9 in. (50.8 x 27.9 x 22.9 cm)
• Front Wheel10-in. silver
• Rear Wheel9-in. silver
• Dimensions
• Overall Vehicle Size (LxWxH)72 x 40.5 x 43.5 in. (183 x 103 x 110.5 cm)
• Wheelbase47 in. (118.7 cm)
• Ground Clearance10.2 in. (26 cm) center of ATV
• Seat Height31.5 in. (80 cm)
• Capacities
• Fuel Capacity3.3 gal (12.5 L)
• Weights
• Dry Weight429 lb (195 kg)
• Lights and Safety
• Lighting2 headlamps (35 W) with tail light and brake light
• Electric
• GaugesNeutral light, reverse light and oil / temperature light

Payment Terms︰ TT/WU/LC

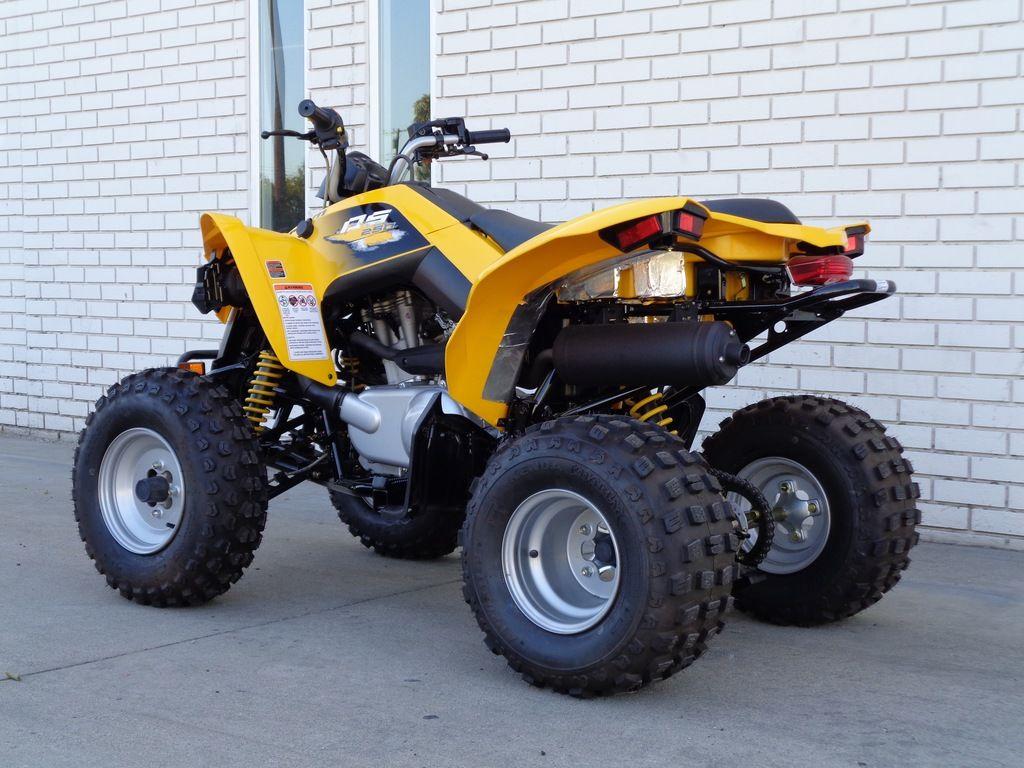

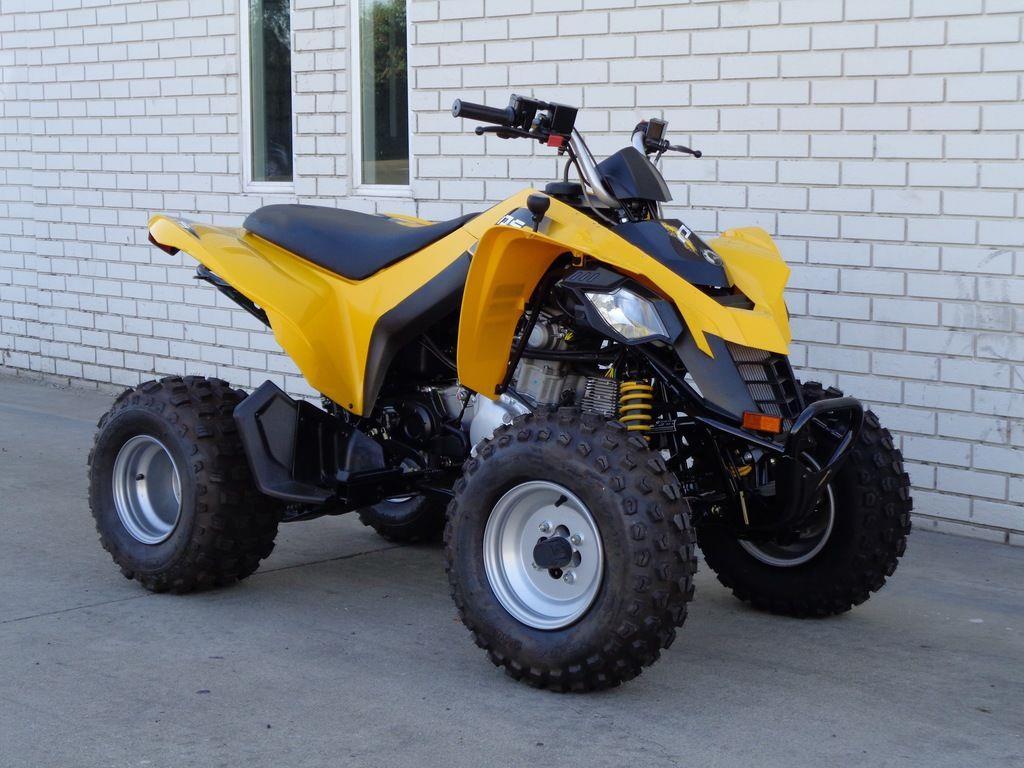

Product Image
