Product Description

• Engine
• EngineSingle Cylinder Single Overhead Cam, Gas Engine
• Cooling SystemLiquid-Cooled
• Displacement695cc
• StarterElectric Start
• Fuel System
• Fuel SystemClosed Loop EFI
• Drivetrain
• DrivetrainCVT
• Drive SystemEL4 (Electronic Locking 4WD)
• GearsSelection: H,L,N,R,P
• Differential, Front2/4WD Electronic Locking Differential
• Differential, RearRear Gear Case
• SteeringElectronic Power Steering
• Suspension
• Front SuspensionDouble A-Arm, Twin Tube Shocks
• Rear SuspensionDouble A-Arm, Twin Tube Shocks
• Front Travel (in./cm.)10 in (25
• Rear Travel (in./cm.)10 in (25 cm)
• Brakes
• Brake System TypeSingle Lever Front, All Wheel Hydraulic Disc | Foot: Hydraulic Rear | Engine: Standard
• Parking BrakePark in Transmission
• Wheels & Tires

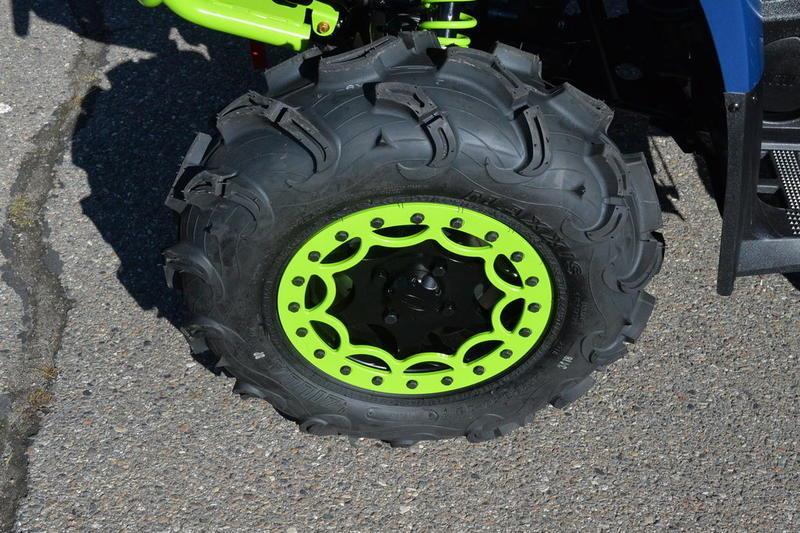

• WheelsAluminum Beadlock Wheels
• Front Tire28 x 9-14 Maxxis Zilla
• Rear Tire28 x 11-14 Maxxis Zilla
• Dimensions
• Overall Length86.5 in (220 cm)
• Overall Width47.5 in (121 cm)
• Overall Height51.8 in (131 cm)
• Wheelbase50 in (127 cm)
• Ground Clearance14 in (35 cm)
• Capacities
• Cargo Capacity515 lb (233.6 kg)
• Rack capacity, front100 lb (45 kg)

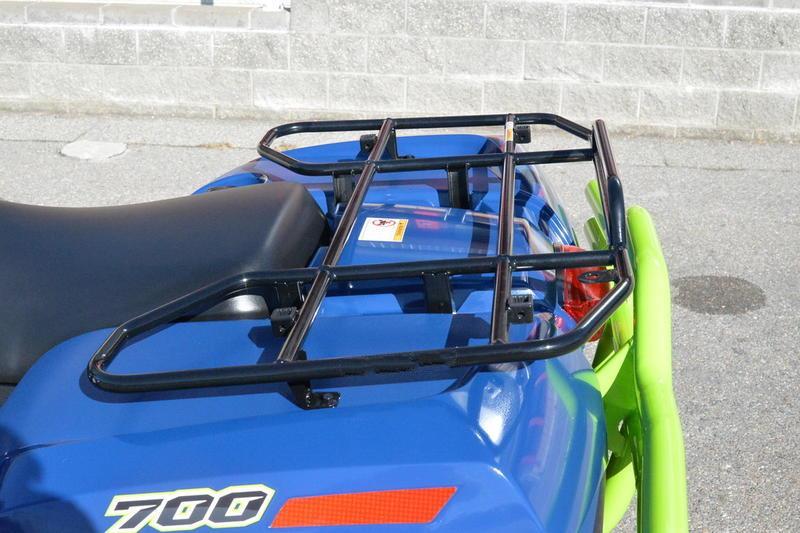

• Rack capacity, rear200 lb (90 kg)
• Towing Capacity1050 lb (476 kg)
• Fuel Capacity5.7 Gal. (21 L)
• Weights
• Dry Weight820 lb (372 kg)
• Color
• ColorsEarth Blue
• Lights and Safety
• LightingDual Beam Headlights and Brake Lights/Taillights
• Features
• Hitch/TypeStandard/2-in (5cm) Receiver

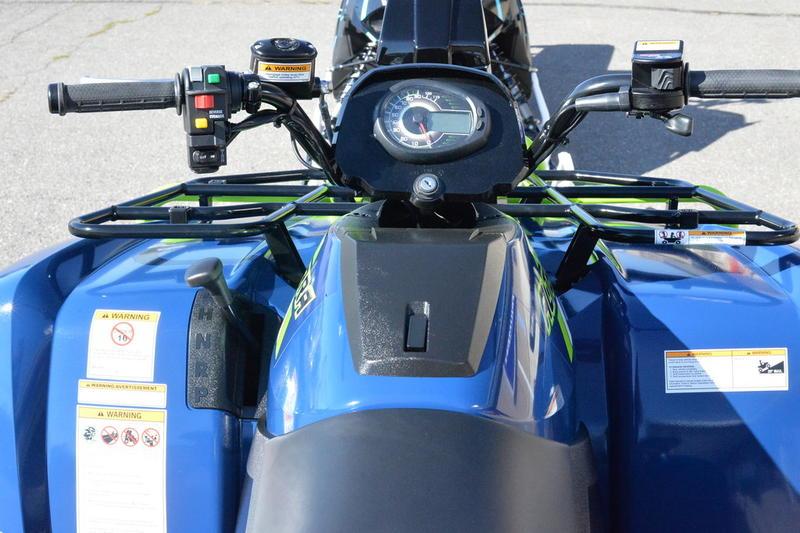

• InstrumentationDigital Gauge, Analog Speedometer, Odometer, Tachometer, Tripmeter, Gear Indicator, Fuel Gauge, AWD Indicator, Hi-Temperature/Low Battery Lights, DC Outlet
