Product Description

• Engine
• Engine Type72 hp, Rotax®, V-twin,
• Displacement976 cc
• Cooling SystemLiquid cooled with strategically positioned engine air intake
• Fuel InjectionIntelligent Throttle Control (iTC™ ) with Electronic Fuel Injection (EFI)
• Battery
• Battery12 V (30 amp/h)
• Drivetrain
• DrivetrainLockable rear differential and lockable front differential with exclusive Smart-Lok** technology | Driving Assitance: Electronic Hill Descent Control. ECO / Work / Normal modes
• TransmissionPRO-TORQ Transmission with Quick Response System (QRS), Electronic Drive Belt Protection and high airflow ventilation with strategically positioned CVT air intake and exhaust. Lower gearing ratio. Extra-L / H / N / R / P
• SteeringPower: Dynamic Power Steering (DPS)
• Suspension
• Front SuspensionDouble A-arm with arched A-arms and sway bar
• Front Travel (in./cm.)10 in. (25.4 cm)
• Front ShocksTwin tube gas charged shocks
• Rear SuspensionTTA with arched lower arms and external sway bar
• Rear Travel (in./cm.)10 in. (25.4 cm)
• Rear ShocksTwin tube gas charged shocks
• Brakes
• Front braking systemDual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
• Rear braking systemDual 220 mm ventilated disc brakes with hydraulic single-piston calipers
• Wheels & Tires
• Front TireITP* Cryptid† 30 x 9 x 14 in. (76.2 x 22.9 x 35.6 cm)
• Rear TireITP* Cryptid† 30 x 11 x 14 in. (76.2 x 27.9 x 35.6 cm)
• Wheels14 in. (35.6 cm) cast-aluminum with machined finish | Steering: Adjustable tilt steering
• Dimensions
• Overall Vehicle Size (LxWxH)160.5 x 64 x 82 in. (407.6 x 162.5 x 208.3 cm)
• Wheelbase115.5 in. (294 cm)
• Ground Clearance15 in. (38.1 cm)
• DimensionsCargo Box: 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
• Seat Height33.8 in. (85.8 cm)
• Capacities
• Rack capacity, front120 lb (54.4 kg)
• Rack capacity, rear240 lb (109 kg)
• Storage CapacityTotal: 16.9 gal (63.9 L) | Under dash: 6 gal (22.8 L) | Waterproof and removable box under passenger seat: 5.6 gal (21 L) | Dash: 2 gal (7.7 L) | Water-resistant and removable toolbox: 1.7 gal (6.3 L) | Armrests and cup holders: 1.6 gal (6.1 L)
• Towing Capacity2,500 lb (1,134 kg)
• Payload Capacity1,650 lb (750 kg)
• Fuel Capacity10.6 gal (40 L)
• Cargo CapacityBox: 1,000 lb (454 kg) | Tailgate: 250 lb (113.4 kg)
• Seating Capacity6
• Weights
• Dry WeightEstimated: 2,006 lb (910 kg)
• Features
• FeaturesWinch: Relocated 4,500 lb (2,041 kg) winch with synthetic rope and roller fairlead
• InstrumentationTwo lighter type DC outlets, one in the console (20 A) and one in the under dash storage (20 A)
• Seat TypeDual VERSA-PRO bench seats with bolster seats for additional lateral support, passenger seats flipping up, adjustable driver seat, underside hooks, reinforced seat skin featuring X package trims and contoured bench to improve entrance/exit of the cab
• Protection PlanHeavy-duty front steel bumper, full HMW skid plate, aluminum rock sliders and mudguards
• Hitch/Type2 in. hitch receiver
• Magneto650 W
• Lights and Safety
• Lighting140 W lighting output from four 35 W reflectors ensuring a wide visiblity, plus LED tail lights with halo glow effect
• Electric
• GaugesMultifunction analog / digital: Speedometer, tachometer, odometer, trip and hour meters, fuel, gear position, ECO™ / Normal / Work modes, seat belt and 4 x 4 indicator, diagnostics, clock, auto shut off

Payment Terms︰ TT/WU/LC

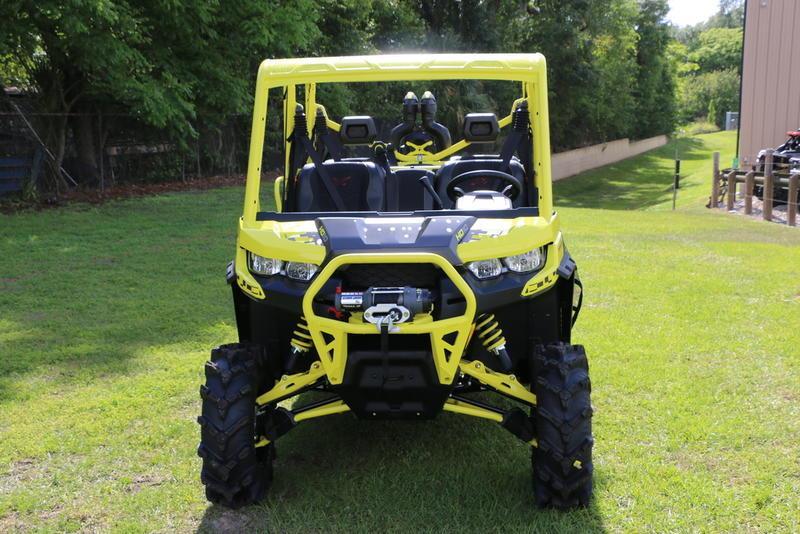

Product Image
